Piston Pump Usage:

1. Matching with spraying silos for powder (Including ceramic, chemical and all the industries using spray gun).
2. Pumping the slurry to filter presses (including washed kaolin, wastewater treatment, food and all the other solid liquid separation industries).
3. Long transporting distance (200-1500m), or one pump aside several pools for slurry transport.

Piston Pump Working Principle:

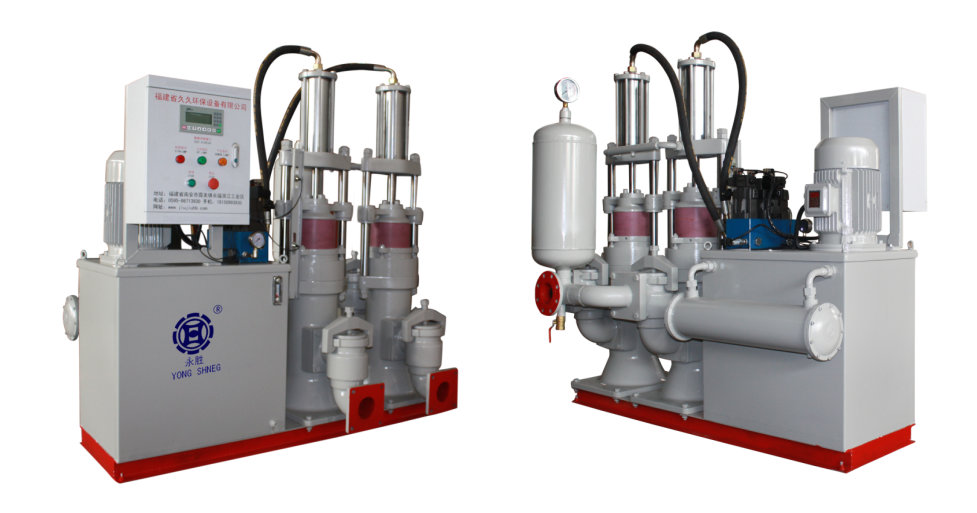

YB series ceramic piston pump is hydraulic driven, Double-cylinder double-acting volume pump (vacuum pump).

This pump is driven by the motor, through the gear coupling to start up gear pump (referred to the oil pump), the oil pump suck low pressure oil from the tank and then discharge high pressure oil, through the valve, the high pressure oil is alternating into the two hydraulic cylinders, driving hydraulic cylinder pistons, then the pistons drives the two ceramic pistons (ceramic plunger) to reciprocate alternately, and the slurry is sucked and discharged through the pump inlet and outlet.

Reference about Pump Model Choice:

YB series piston pump is mainly used for transporting ceramic slurry, coal water slurry, kaolin and non-metallic mineral suspension liquid transportation. It is also used for the transportation of mine slurry, food suspension liquid, chemical slurry and magnetic material. The slurry pumped could be of more than 70 % solid content. What is more, variable frequency pump (variable flow pump) matching with filter press will be high efficient and save energy.

Attention for Choice:

1. Check the slurry character, the slurry is not allowed to have big particles, otherwise it will cause pump work failure. If the slurry could not be polluted by iron, customer should choose the   stainless steel plunger pump. For the acidic or alkaline slurry, customer should choose anti-corrosion plunger pump.
2. Confirming the suitable flow range, the flow rate of pump is rated; customer should consider the suitable margin range for flow.
3. Confirming the suitable pressure, the rated of the piston pump could reach 2.0Mpa. For matching with filter press, customers should choose variable flow pump (or variable frequency pump). For only transportation, customers should choose low pressure pump for saving cost and energy. After confirming the parameters, according to the principle of rather big than small, customer choose the pump according to the standard model.
4. If any question, please call us, we will let our engineer to help you to choose the model.

Advantages:

1. The motor power is greatly reduced, using the latestTaiwan PLC control technology, integrated motor and liquid control, with double oil pumps for high efficient energy saving and good environment protection.
2. Automatically oil pressure checking time to time, if the pressure isbeyond the set pressure, the pump could be automatically shut down. Its pressure adjustment ismore accurate and more convenient.
3. Adoptingelectro-hydraulic reversing, reducing the mechanical wearing, avoiding the risk of oil leaking from mechanical valve.
4. Intelligent hydraulic control, low pressure large flow, high pressure small flow, the oil temperature will be not hot.
5. Weindependently developed feed filtration device to preventthe air leakage of check valve and promise the right mud flow.
